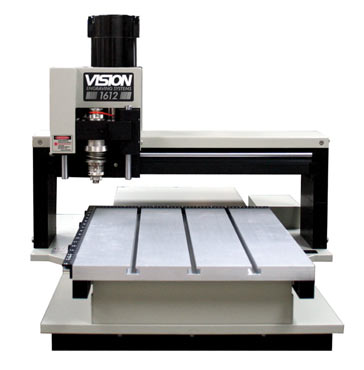

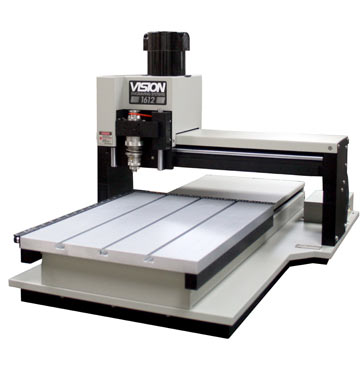

Vision 1612 Engraver

Vision 1612 Engraver

Increase Capabilities & Business Revenue!

Vision’s 16 Series Engravers are ideal for light to heavyduty applications in a medium-size engraving area. Off ering a 16” x 12” and 16” x 24” aluminum T-slot table, these wood, plastic and metal engravers have set the precedent for quality in the industry and are designed for light to industrial marking applications. In addition to trophies, plaques and gift items, their extremely rigid design allow these tables to be used for a variety of applications including notary seals, tool & die work, tags and plates, deep metal cutting and ADA-compliant Braille signage.

Download Brochure

Technical Specification
Software Vision Express (Expert or PRO optional)
MAX. Work Area 16”x12” and 16” x 24”
Maximum Work Piece Size 18.5”(L) x Any Width x 5”(H) and 30.5”(L) x Any
Width x 5”(H)
Z-Axis Clearance 1.75 inch (44.45 mm)
Z-Axis Stroke 1.75” standard (3.375” w/riser kit)
Table Resolution .0002”
Spindle Type 11/64”, 6mm or 1/4” / Top Loading, Collet Spindle
Available
Table Type Aluminum T-slot
Interface Ethernet
Controller Series 5 High Speed-Controller With V-Touch Pendant
Warranty 2-Year Limited
Power Requirements 110/220V 5 Amp
Physical Dimensions 31.5”(W) x 21”(D) x 19”(H) – 200 lbs and 31.5”(W) x
35”(D) x 19”(H) – 250 lbs
Shipping Dimensions 31.5”(W) x 21”(D) x 30”(H) and 43”(W) x 41”(D) x
30”(H) – 290 lbs
Additional Options See Website
View full details
Parts Marking
Metal Routing
Wood Routing
Print-to-Cut
ADA Braille Signs
  • The 16 Series Offers

    • Red laser pointer for easy job set-up
    • Quick Lock Vise for holding materials in place
    • Ethernet connection
    • 2-year limited warranty
    • V-Touch Pendant With Multi Functional Touch Screeen
  • Why Choose Vision?

    • Leading worldwide manufacturer of engravers and routers
    • Made in the USA since 1983
    • High-quality, reliable products
    • Dedicated technical support
