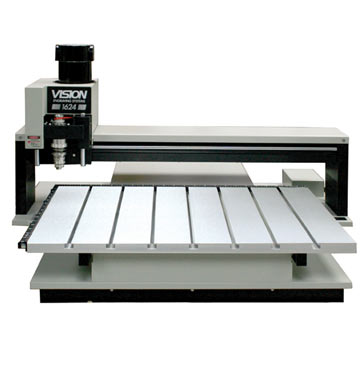

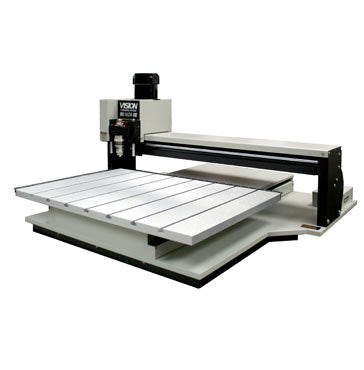

Vision 1624 Engraver
Vision 1624 Engraver
Increase Capabilities & Business Revenue!
Vision’s 16 Series Engravers are ideal for light to heavy duty applications in a medium-size engraving area. Offering a 16” x 12” and 16” x 24” aluminum T-slot table, these wood, plastic and metal engravers have set the precedent for quality in the industry and are designed for light to industrial marking applications. In addition to trophies, plaques and gift items, their extremely rigid design allow these tables to be used for a variety of applications including notary seals, tool & die work, tags and plates, deep metal cutting and ADA-compliant Braille signage.
Download Brochure
Technical Specification
| Software | Vision Express (Expert or PRO optional) |
| MAX. Work Area | 16”x12” and 16” x 24” |
| Maximum Work Piece Size | 18.5”(L) x Any Width x 5”(H) and 30.5”(L) x Any Width x 5”(H) |
| Z-Axis Clearance | 1.75 inch (44.45 mm) |
| Z-Axis Stroke | 1.75” standard (3.375” w/riser kit) |
| Table Resolution | .0002” |
| Spindle Type | 11/64”, 6mm or 1/4” / Top Loading, Collet Spindle Available |
| Table Type | Aluminum T-slot |
| Interface | Ethernet |
| Controller | Series 5 High Speed-Controller With V-Touch Pendant |
| Warranty | 2-Year Limited |
| Power Requirements | 110/220V 5 Amp |
| Physical Dimensions | 31.5”(W) x 21”(D) x 19”(H) – 200 lbs and 31.5”(W) x 35”(D) x 19”(H) – 250 lbs |
| Shipping Dimensions | 31.5”(W) x 21”(D) x 30”(H) and 43”(W) x 41”(D) x 30”(H) – 290 lbs |
| Additional Options | See Website |
-
The 16 Series Offers
- Red laser pointer for easy job set-up
- Quick Lock Vise for holding materials in place
- Ethernet connection
- 2-year limited warranty
- V-Touch Pendant With Multi Functional Touch Screeen
-
Why Choose Vision?
- Leading worldwide manufacturer of engravers and routers
- Made in the USA since 1983
- High-quality, reliable products
- Dedicated technical support
