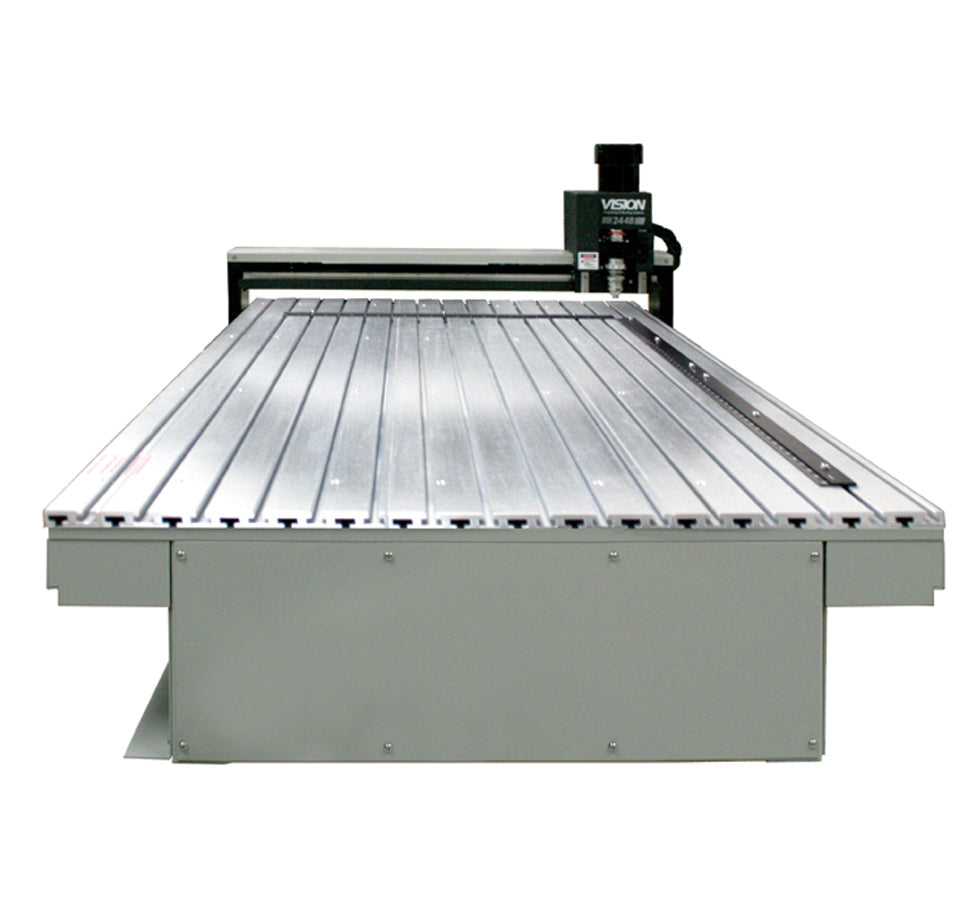

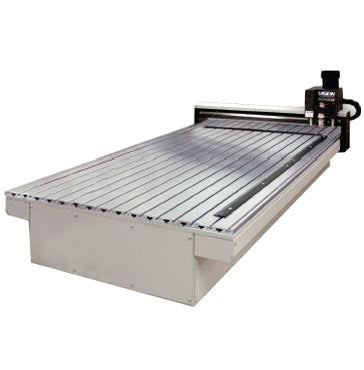

Vision 2448 Engraver

Vision 2448 Engraver

Increase Capabilities & Business Revenue!

Vision’s 24 Series Engravers are ideal for light to heavy-duty
applications in a large size engraving area. Off ering a 24” x 24” or 24” x 48” table, these machines are great for a variety of jobs such as volume production work, large signage, industrial marking, and multiple plate
jobs. With the ability to engrave an entire sheet of engravers’ plastic,
the Vision 2424/2448 are the ultimate productivity tool for your shop. The 2424 /2448 commercial engravers are also ideal for marking industrial items such as tools, cylinders, pipes, and gauges.

Download Brochure

Technical Specification
Software Vision Express (Expert or PRO optional)
MAX. Work Area 24” x 24” / 24” x 48”
Maximum Work Piece Size 30.5”(L) x Any Width x 5”(H)
Z-Axis Clearance 1” (25.4mm)
Z-Axis Stroke 1” standard (1.75” w/ riser kit)
Table Resolution .0002”
Spindle Type 11/64”, 6mm or 1/4” / Top Loading, Collet Spindle Available
Table Type Removeable Aluminum T-slot
Interface Ethernet
Controller Series 5 High Speed-Controller With V-Touch Pendant
Warranty 2-Year Limited
Power Requirements 110/220V 15 Amp
Physical Dimensions 33”(W) x 42”(D) x 20”(H) -370 lbs / 33”(W) x 66”(D) x 20”(H) – 420 lbs
Shipping Dimensions 43”(W) x 58”(D) x 30”(H) – 386 lbs /
43”(W) x 80”(D) x 30”(H) – 532 lbs
Additional Options Automatic Braille Inserter
View full details
Parts Marking
Metal Routing
Wood Routing
Print-to-Cut
ADA Braille Signs

  • The 1624r Offers

    • Red laser pointer for easy job set-up
    • Large 24” x 24” or 24” x 48” work area
    • Ethernet connection
    • 2-year limited warranty
    • V-Touch Pendant With Multi Functional Touch Screeen

  • Why Choose Vision?

    • Leading worldwide manufacturer of engravers and routers
    • Made in the USA since 1983
    • High-quality, reliable products
    • Dedicated technical support
