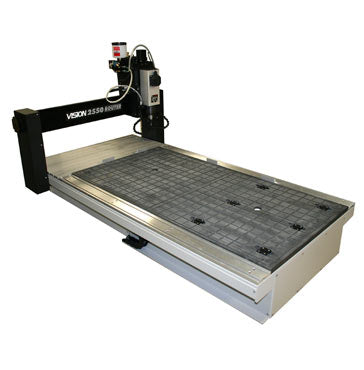

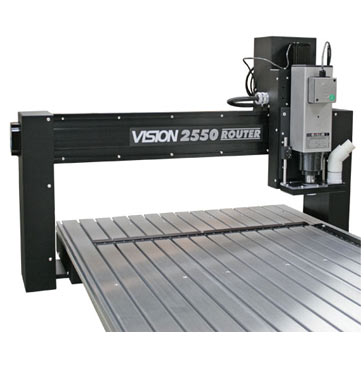

Vision 2550 Router

Vision 2550 Router

Increase Capabilities & Business Revenue!

Our heavy-duty 25 Series CNC Router / Engravers can produce accurate, repeatable, cost-effective work in considerably less time than it takes to do the same work by hand. Featuring our NEW Series 5 Controller with V-Touch Pendant, graphically advanced Vision Pro software, and Red Laser Pointer for easy job setup, the 25 Series is perfect for a wide variety of applications including milling, drilling, contouring, and routing.

Download Brochure

25 Series Router/Engraver Specifications Chart
Software Vision Express (Expert or PRO optional)
MAX. Work Area 25” x 25” / 25” x 50”
Maximum Work Piece Size 30.5”(L) x Any Width x 7”(H)
Z-Axis Stroke 7” (Standard) or 10” (Optional)
Table Resolution .0002”
Spindle Type Engraving Head standard
(3 HP Router Motor optional)
Table Type Aluminum T-slot
Interface Ethernet
Controller Series 5 High Speed-Controller With V-Touch Pendant
Warranty 2-Year Limited
Power Requirements 110/220V 15 Amp
Physical Dimensions 40”(W) x 42”(D) x 32”(H) – 425 lbs /
40”(W) x 66”(D) x 32”(H) – 500 lbs
Shipping Dimensions 47”(W) x 58”(D) x 38”(H) – 534 lbs /
47”(W) x 80”(D) x 38”(H) – 737 lbs
Additional Options Automatic Braille Inserter, DACS (Digitally Aligned Cutting System), 3 HP High Frequency Router Motor, 50,000 RPM Spindle, Oscillating Knife
View full details
Parts Marking
Metal Routing
Wood Routing
Print-to-Cut
ADA Braille Signs

  • The 2550r Offers

    • Red laser pointer for easy job set-up
    • Large 25” x 25” or 25” x 50” work area
    • Ethernet connection
    • 2-year limited warranty
    • V-Touch Pendant With Multi Functional Touch Screeen

  • Why Choose Vision?

    • Leading worldwide manufacturer of engravers and routers
    • Made in the USA since 1983
    • High-quality, reliable products
    • Dedicated technical support
