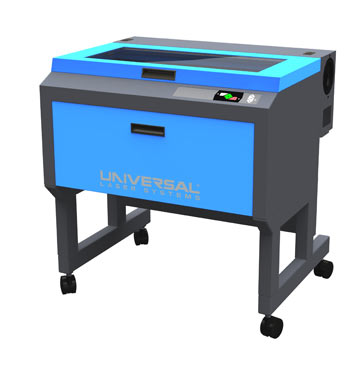

The CO2 laser model VLS 3.75 is the entry level system of Universal’s VLS platform series. It is the smallest of the three available VLS platform models. The first noticeable differences between the platforms and the desktop series are the front loading door and stand with casters.
The CO2 laser model VLS 3.75 is the entry level system of Universal’s VLS platform series. It is the smallest of the three available VLS platform models. The first noticeable differences between the platforms and the desktop series are the front loading door and stand with casters. This, along with 9 inches of Z-axis clearance and a 75 watt maximum power, puts the VLS 3.75 at a different level of capability.
The marking area on the VLS 3.60 is 12? x 24? with a 9 inch maximum Z-axis part size. The VLS platforms use the same 10.6 micron CO2 laser cartridges and same print driver & control panel as all other models. Available laser cartrdiges range from 10 to 60 watts.
You will find the VLS 3.75 in industries such as Trophy & Awards, Architectural, and the Sign industry. Wood workers find the platforms favorable due to the 9 inch Z clearance.
Platform Series Options
Print Driver/Control Panel
Print from your favorite application software. There are virtually NO restrictions. Many options allow you to fine tune marking and cutting for optimum results.
One Touch Photo Software™
Designed by Universal, One Touch allows you to prepare any photograph for your laser system, quickly and easily
CO2 Laser Cartridges
Since 1998 Universal Laser Systems has manufactured their own patented CO2 laser cartridges. These RF metal lasers are air cooled and range from 10-75 Watts.
High Power Density Focusing Optics ™
Patented by Universal, these unique optics allow the laser beam to be focused to a much smaller spot size, producing sharper images at tighter tolerances. It also gives you the ability for direct marking on certain metals.
Rapid Reconfiguration™ of Lasers
Every laser cartridge we produce is factory pre-aligned for easy integration into any of our laser platforms.
