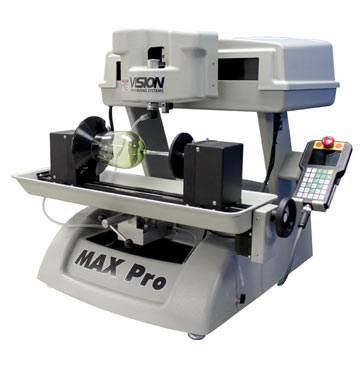

Vision Max Pro Engraver

Vision Max Pro Engraver

Increase Capabilities & Business Revenue!

The MAX Pro Engraver was developed to be Vision’s most versatile machine to date, allowing for engraving of fl at, deep, round or oddshaped items in one compact, easy-touse machine. Its automatic surface-sensing feature allows for fl at and curved surface engraving on a wide range of other materials as well, such as plastic, brass, coated and non-coated metals, and more. The system includes Vision’s Auto Laser Layout feature, which sends the engraving area and position directly to the software without measuring. Applications for this machine run the gamut from plaques, tags, badges, cylindrical metal objects to industrial parts marking.

Download Brochure

Max Pro Engraver Specifications Chart
Software Vision Express (Expert or PRO optional)
MAX. Work Area 8 x 12 inches
Maximum Work Piece Size Flat 14”(L) x Any Width x 7”(H)
Cylindrical 12” x 6” Diameter
Z-Axis Clearance 3 inch (76.2 mm)
Z-Axis Stroke 3” standard
Table Resolution .0002”
Spindle Type 11/64”, 6mm or 1/4” Top Loading
Table Type Removeable Aluminum T-slot, Cylindrical
Interface Ethernet
Controller Series 5 High Speed-Intergrated Controller With V-Touch Pendant
Warranty 2-Year Limited
Power Requirements 110/220V 2 Amp
Physical Dimensions 28”(W) x 28”(D) x 26”(H) – 120 lbs
Shipping Dimensions 37”(W) x 35”(D) x 39”(H) – 290 lbs
Additional Options Top/Bottom Collet, Ring Attachment
View full details
Parts Marking
Metal Routing
Wood Routing
ADA Braille Signs
  • The Max Pro Offers

    • Removable 8” x 12” aluminum t-slot table
    • Interchangeable, self-centering vise with tilt
    • Built-in cylindrical feature for engraving round items
    • A self-contained, recircualting water pump
    • V-Touch Pendant With Multi Functional Touch Screeen
  • Why Choose Vision?

    • Leading worldwide manufacturer of engravers and routers
    • Made in the USA since 1983
    • High-quality, reliable products
    • Dedicated technical support
