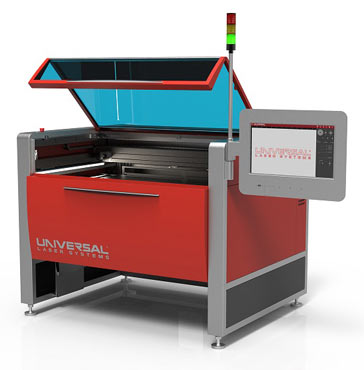

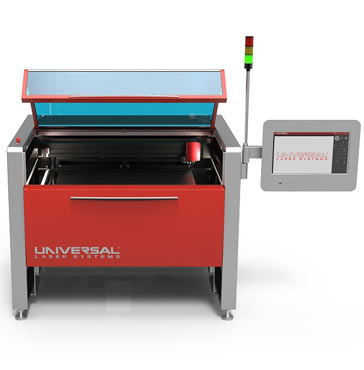

VLS Ultra Model X6000
VLS Ultra Model X6000
Platform Overview
The ULTRA X6000 platform offers laser material processing for the widest possible range of materials. It is designed and ideally suited for precision material processing in manufacturing, research and development, academic research, and prototyping environments. With its unique modular architecture, customizable solutions can be easily reconfigured with a wide array of options for enhancing performance, capability, and safety to complete the perfect solution to meet present and future business needs.
Download Brochure
Platform Specifications
| Material Processing Envelope (X,Y,Z) | 36 x 24 x 12 in. (914 x 610 x 305 mm) |
| Minimum Addressable Beam Positioning | 2 μm (.00008 in.) beam position addressability |
| Maximum Effective Raster Material Processing Speed | >300 in./sec (7620 mm/sec) [Requires SuperSpeed™ operation] |
| Multiple Laser Support | UP TO 3 LASER SOURCES CAN BE USED INDIVIDUALLY OR IN COMBINATION Laser Sources Available – CO2: 10.6 μm 10, 30, 40, 50, 60, 75, and 150 watt laser sources – CO2: 9.3 μm 30, 50, and 75 watt laser sources – Fiber: 1.06 μm 50 watt laser source Laser Sources Combinations – Up to (2) CO2 laser sources and (1) permanently mounted Fiber laser source SUPPORTS RAPID RECONFIGURATION OF CO2 LASERS |
| Maximum Laser Power |
CO2: 300 watts Fiber: 50 watts |
| System External Dimensions |
Width: 63.09 in. (1603 mm) with Control Panel folded 87.75 in. (2229 mm) with Control Panel extended Depth: 50.07 in. (1272 mm) Height: 47.67 in. (1219 mm) to top of enclosure 74.42 in. (1890mm) to top of Light Tower |
| Weight | 550 lbs (250 Kg) |
| Power Requirements | 220V-240V/20A (300 Watt configuration requires high power kit and 30A) |
| Exhaust Requirements | Intelligent Air Filtration (UAC 4000) or External Exhaust Blower Capable of >700 CFM at 6 in. WG Static Pressure (1190 m3/hr. at 1.5 kPa) 6 in. (152mm) Exhaust Port |
| Computer Requirements | Not required; includes integrated 21” Touch Screen Control Panel |
| Laser Safety Classification | Class 1 for material processing lasers Class 2 overall due to red laser pointer Can convert to Class 4 with optional Class 4 module |
| NOTES | Weight is approximate and varies with laser source selection * Available feature |
The ULTRA X6000 platform has a materials processing envelope of 36 x 24 in (914 x 610 mm), with support for materials with a thickness up to 12 in (305 mm).
Configure the customizable ULTRA X6000 platform with up to three laser sources consisting of two interchangeable CO2 lasers and one fiber laser. When the platform is configured with three lasers, users can take full advantage of MultiWave Hybrid™ technology enabling up to three wavelengths – 9.3 µm, 10.6 µm, and 1.06 µm – to be simultaneously combined into a single coaxial beam. Each spectral component of the beam is independently controlled and can be modulated in real time.
Major features include multiple laser support, rapid high-accuracy laser beam positioning, precision material-independent autofocus, controllable laser power density, an automation interface, camera registration, an integrated touch screen control panel, over temperature detection, and support for fire suppression.
Ultra Series Options
Camera Registration
A feature that aligns a control file to registration marks or features on the surface of a material. Compensates for scale, skew, and perspective.
Precision Material Independent Autofocus
Repeatability of ± .0025 in. (63.5 μm) using motorized focus assembly and high-resolution touch sensor.
SuperSpeed™ Technology *
A patented feature that produces two focal spots (one for each laser beam) to enable the system to deliver two independently controlled raster lines at a time. SuperSpeed requires a laser system equipped with two CO2 lasers of the same wavelength and power.
Multi-Wave Hybrid™ Technology *
A patented technology that enables a combination of laser wavelengths (up to three wavelengths) to be focused to the same focal point within the same focal plane and used either sequentially or simultaneously.
Rapid Reconfiguration™
A patented technology that enables users to install and reinstall any supported ULS CO2 laser source onto any ULS laser system without tools and optical alignment to optimize laser processing for the widest variety of materials.
Intelligent Materials Database
A powerful and unique database that generates laser processing parameters for a wide variety of materials and laser system configurations. If the system configuration changes, the database automatically recalculates the parameter values.
