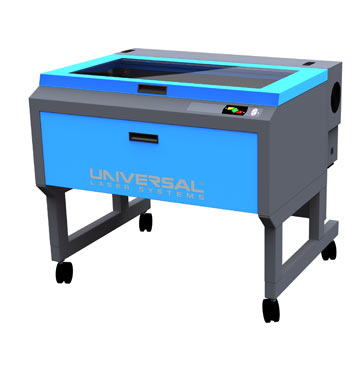

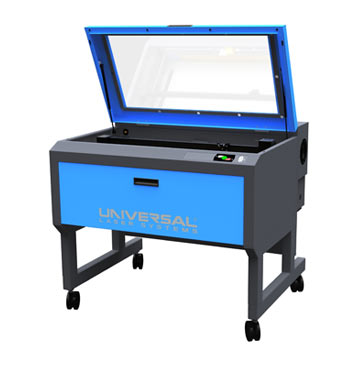

VLS Platform Model 6.75

VLS Platform Model 6.75

Platform Overview

The VLS 6.75 is the largest model in the VLS platform series. It offers a material processing envelope of 32″ x 18″ x 9″, 5,184 in3 (813 x 457 x 229mm, 84,950 cm3) and can be equipped with one 10.6µm Co2 laser source ranging in power from 10 to 75 watts or one 9.3µM CO2 at 10, 30, 50, or 75 Watts.

Download Brochure

Platform Specifications
Laser Material Processing Area {W x H) 32 x 18 in (813 x 457mm)
Maximum Part Size (W x H x D) 37 x 23 x 9 in (940 x 584 x 229mm)
Overall Dimension (W x H x D) 44 x 39 x 36 in (1118 x 991 x 914 mm)
Rotary Capacity Max Diameter 8 in (203 mm)
Motorized Z Axis Lifting Ca pacity 40 lbs (18 kg)
Available Focus Lenses 1.5 in (38 mm)
2.0 in (51 mm) *standard
2.5 in (64 mm)
4.0 in (102 mm)
HPDFO”’ (H igh Power Density Focusing Optics)
Laser Platform Interface Panel Five button keypad
Computer Requirements Requires dedicated PC with Windows’- 7/8/10 32/G4 bit and one available USB port (2.D or higher)
Optics Protection Integrated with included gas assist
Cabinet Style Floor-Standing
Laser Options 10, 30, 40, 50, 60, and 75 Watts
Weight 325 lbs (147 kg)
Power Requirements 110V/1OA
Exhaust Requirements Two 4 in (102 mm) ports
500 CFM @ 6 in static pressure (850 m3/hr at 1.5 kPa)
View full details

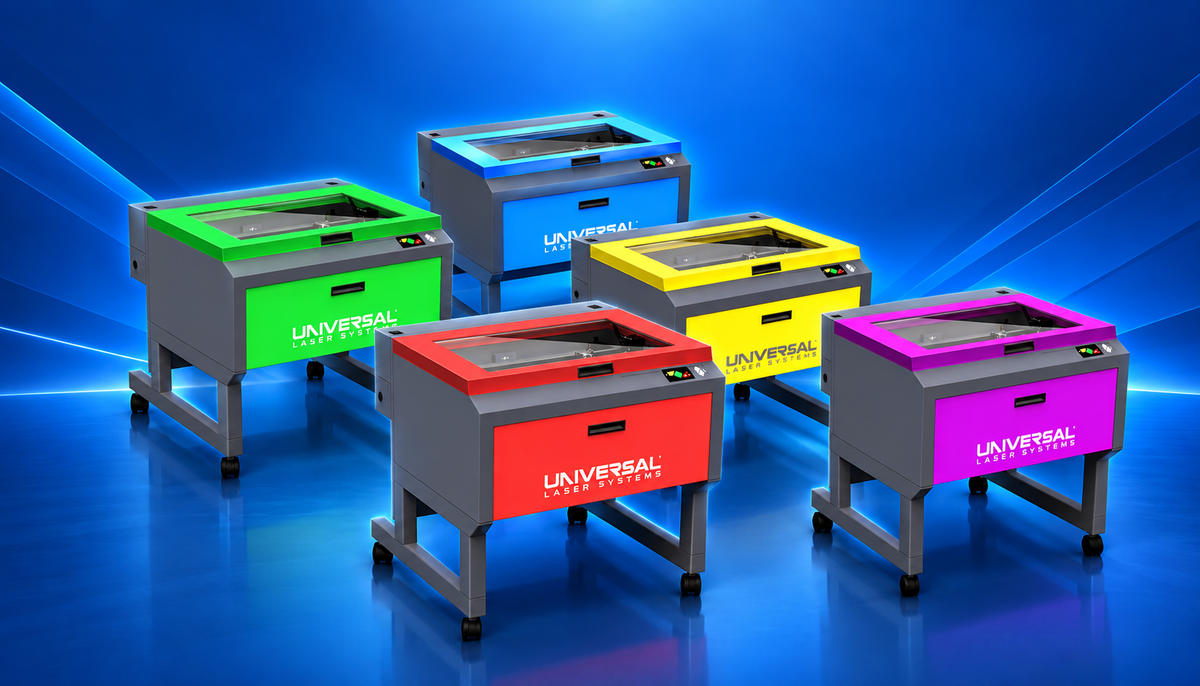

Platform Series Options

Included Accessories Gas Assist

Manual Gas Assist (With Optics Protection)

Gas Assist injects a stream of gas onto the material being processed at the point where the laser focuses onto the material. Optics protection supplies a constant stream of clean air creating positive pressure around critical optical elements, such as mirrors and lenses to keep them clean. The gas can be supplied either by an air compressor or from external gas tanks.


  • Reduces the accumulation of residue deposits
  • Improves cutting and engraving
  • Protects optics

Included Accessories Safety & Facility

Fire Detecbon (Audible Alarm)

Fire Detection (Audible Alarm)

Included Accessories Software

Universal Control Panel

The Universal Control Panel (UCP} is a user interface that controls ULS laser systems. This intuitive interface enables users to produce expert-quality results. The UCP includes a Prirrler Driver and Direct Import Feature for uploading graphic designs. The UCP also provides an Intelligent Materials Database that calculates optimized settings for laser processing on hundreds of materials.


  • Intuitive and easy to use: allows laser cutting, engraving, and marking to be executed in three easy steps
  • Time-saving features maximize productivity: Direct Import Materials Database, Duplicate, Estimate, Storage and Organization
  • Manual Control feature allows users to enter individual laser settings for unique materials and applications, providing unlimited processing flexibility
Intelligent Materials Database

The Intelligent Materials Database automatically calculates optimized settings for laser processing on hurderds of matetlals.


  • Ever expanding database of laser processable materials allows users to achieve optimal results and avoid the learning curve for processing new materials
  • Gives you limited control over your laser processing parameters when needed

Optional Accessories Gas Assist

Coaxial Gas Assist Attachment

The Coaxial Gas Assist attachment directs flow perpendicular to the material’s surface. There are different Coaxial Gas Assist Attachments for each focusing lens; these maintain the optimal distance from the material while avoiding beam path
obstruction. The Coaxial Gas Assist attachment forces air against the material and helps remove laser material processing byproducts from cutting, engraving, and marking processes.


  • Improved laser material
  • Increased system safety
  • Reduced maintenance
The Lateral Gas Assist Attachment

The Lateral Gas Assist attachment is an adjustable attachment that can direct air along the material’s surface at a variety of incident angles. This is particularly helpful in raster engraving applications where debris can be removed from the engraving for ideal processing.


  • Improved laser material
  • Increased system safety
  • Reduced maintenance
Compressed Air Source

ULS offers a compressed air solution that delivers optimally-conditioned air to both the Optics Protection and Gas Assist components. Additionally, the compressor controls the Laser cutting, engraving, and marking equipment by supplying air only when it is demanded, reducing unnecessary wear, electrical costs and noise.


  • Clean and oil free air
  • Dry air
  • Turns on and off based on laser system requirements

Optional Accessories Air Filtration and Handling
